The QMSOFT®/QM-GAUGECAL program is used for the computer-aided determination of target values of smooth gauges, threads or thread gauges including tapered thread types, as well as for calculating test dimensions for internal and external threads. With the implementation of a variety of national and international standards, this calculation library is one of the most comprehensive on the market. The following standards are supported:

• Good gauge rings according to DIN 7150-2:2007, BS 269:1982, ANSI/ASME B89.1.6M, NF E 02-202
• Reject ring gauges according to DIN 7150-2:2007, BS 269:1982, ANSI/ASME B89.1.6M, NF E 02-202
• Setting rings according to DIN 2250-1 October 2008, BS 4064, BS 4065,
• ANSI/ASME B89.1.6M, NF E 11-011
• Good plug gauges according to DIN 7150-2:2007, BS 269:1982, ANSI/ASME B89.1.6M, NF E 02-202
• Reject plug gauges according to DIN 7150-2:2007, BS 269:1982, ANSI/ASME B89.1.6M, NF E 02-202
• Limit plug gauges according to DIN 7150-2:2007, BS 269:1982, ANSI/ASME B89.1.6M, NF E 02-202
• Good jaw gauge according to DIN 7150-2:2007
• Reject jaw gauge according to DIN 7150-2:2007
• Limit jaw gauge according to DIN 7150-2:2007
• Measurements with spherical end faces according to DIN 7150-2:2007
• Test gauges for jaw gauges according to DIN 7150-2:2007
• Shipping washers type 1, 2 and 3 according to ANSI/ASME B89.1.6M
• Metric ISO threads according to DIN ISO 1502:1996 (DIN ISO 965:1998)
• Metric ISO trapezoidal thread according to DIN 103:1997
• Thread or thread gauges according to ANSI/ASME B1.1-1982 / B1.2-1983
• Thread gauges for ANSI/ASME B1.1 threads according to BS 919 (Part 1)
• Gauges for pipe threads according to DIN ISO 228:2000
• Gauges for pipe threads according to DIN 259 (old standard)
• Gauges for armored pipe threads according to DIN 40431:1972
• Gauges for round threads according to DIN 405:1997
• Thread or thread gauges according to BS 84 or BS 919 (Part 2)
• Gauges for saw threads according to DIN 513:1985 / factory standard
• Metric and Unified HELICOIL threads according to Böllhoff factory standards
• Gauges for metric threads according to ANSI B1.16-M-1984
• Gauges for bolt threads with transition tolerance field according to DIN 13 Part 51
• NPSM pipe thread according to ANSI / ASME 1.20.1
• Valve thread according to DIN 7756:1979 and ETRTO V.7
• Metric threads according to NF E 03-152/153 (or GE40-010N)
• Gauges for unified threads according to CNOMO GE40-008N (PSA, Renault)
• ACME thread according to ANSI B1.5-1988
• Stub ACME thread according to ANSI B1.8-1988
• Saw thread 7°/45° (buttress) according to ANSI B1.9 – 1973
• Pipe Threads, General purpose (NPT..) according to ANSI/ASME B1.20.1 – 1983
• Pipe threads where pressure-tight joints are made on the threads according to ISO 7-2:2000
• Pipe threads for tubes and fittings according to BS21:1985
• Metric External Taper Screw Threads according to DIN 158
• Gauges for Dryseal Pipe Threads (e.g. NPTF..) according to ASME B1.20.5-1991
• Whitworth Pipe threads for threaded pipes and fittings according to DIN 2999 – July 1983

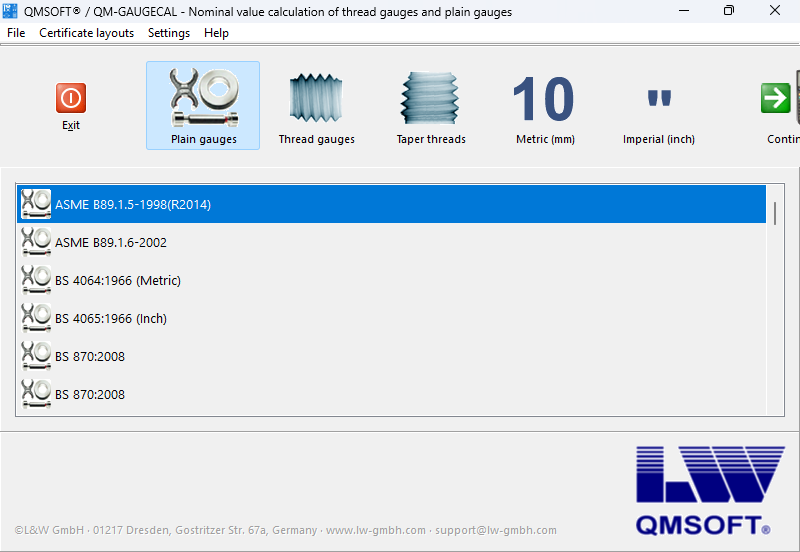

After selecting the gauge type (e.g. thread gauge ring) the program calculates all the required gauge dimensions and tolerances from the entered thread designation (e.g. M20x1). As far as the gauge name indicates, the corresponding gauge standard is determined automatically. Limitations of the underlying standards are pointed out.

The program works with the test equipment management program QMSOFT®/QM-MANAGE professional edition, whereby the The calculation results obtained by the program are returned directly to the test equipment database.
